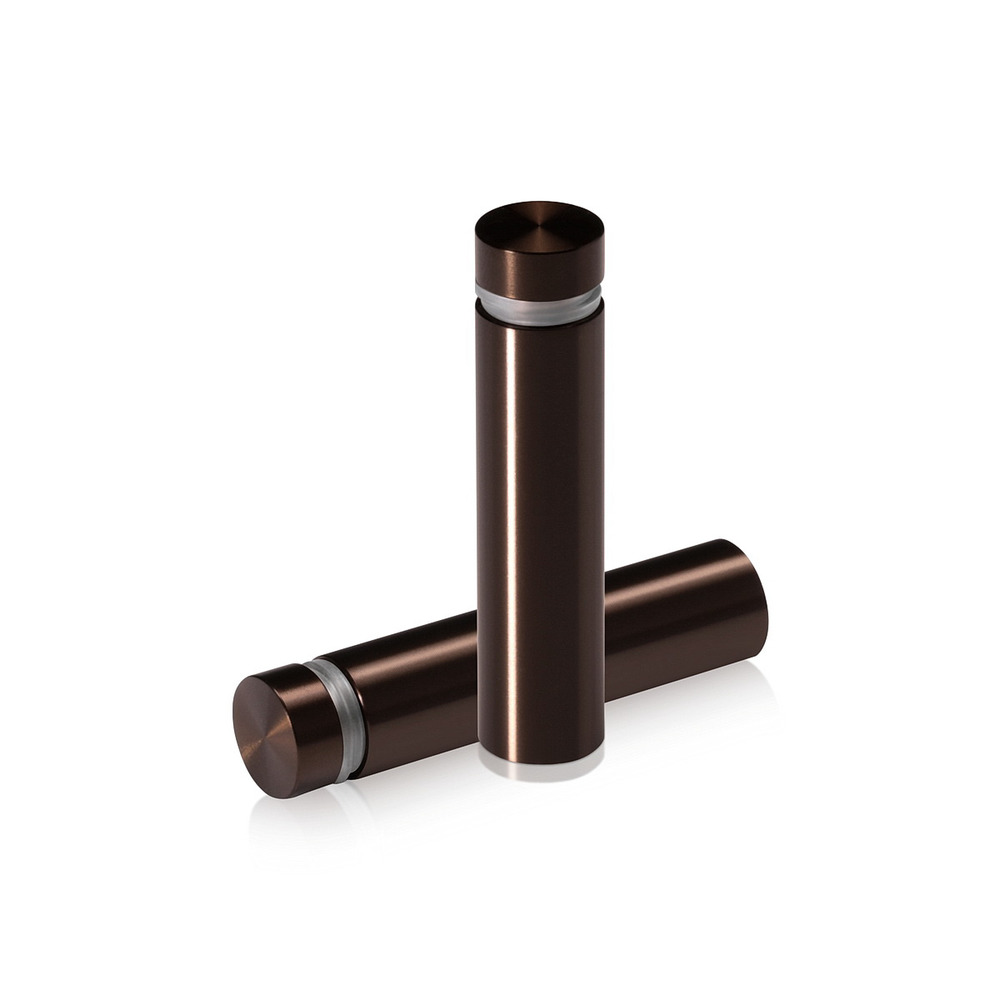

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 1/2'', Standoff: 1 3/4'', Bronze Anodized Finish

Product 1

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

SKU: FAH12-50AB
Unit Price$3.71
Quantity Price Each (USD)
1-99 $3.71
100-501 $3.52
500+ $3.34
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

SKU: FAH12-50AB
1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']
Description:
MBS Standoffs is appreciative to present the brand-new efficient line of Reverse Threading, Flat Head, Tamper Proof standoffs. Our Flat Head 1 3/4'' Standoff 1/2'' Diameter Bronze Anodized standoff systems are developed and also manufactured to the highest criteria; and also supply the adhering to extraordinary qualities that will defiantly permit you to develop the most reliable as well as eye-catching displays within your spending plan. These brand-new flat head, tamper proof standoffs are designed with a reverse thread for interior as well as exterior usage. MBS-Standoffs offer an extensive selection of sizes & dimensions to fulfill any requirement . In addition, there is an outstanding variety of finishes to fulfill any of your innovative expectations. There will certainly be no top quality concerns with MBS's products and the rates vs. quality is the most effective you will discover in the market.

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

SKU: FAH12-50AB
Sku FAH12-50AB
Finish Bronze Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 1/2''
Distance From Wall 1-3/4''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1-3/4''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M8x100
Required Material Hole Size 3/8''
Maximum Thick. Material 5/8''
Screw Size for Installation #6
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
