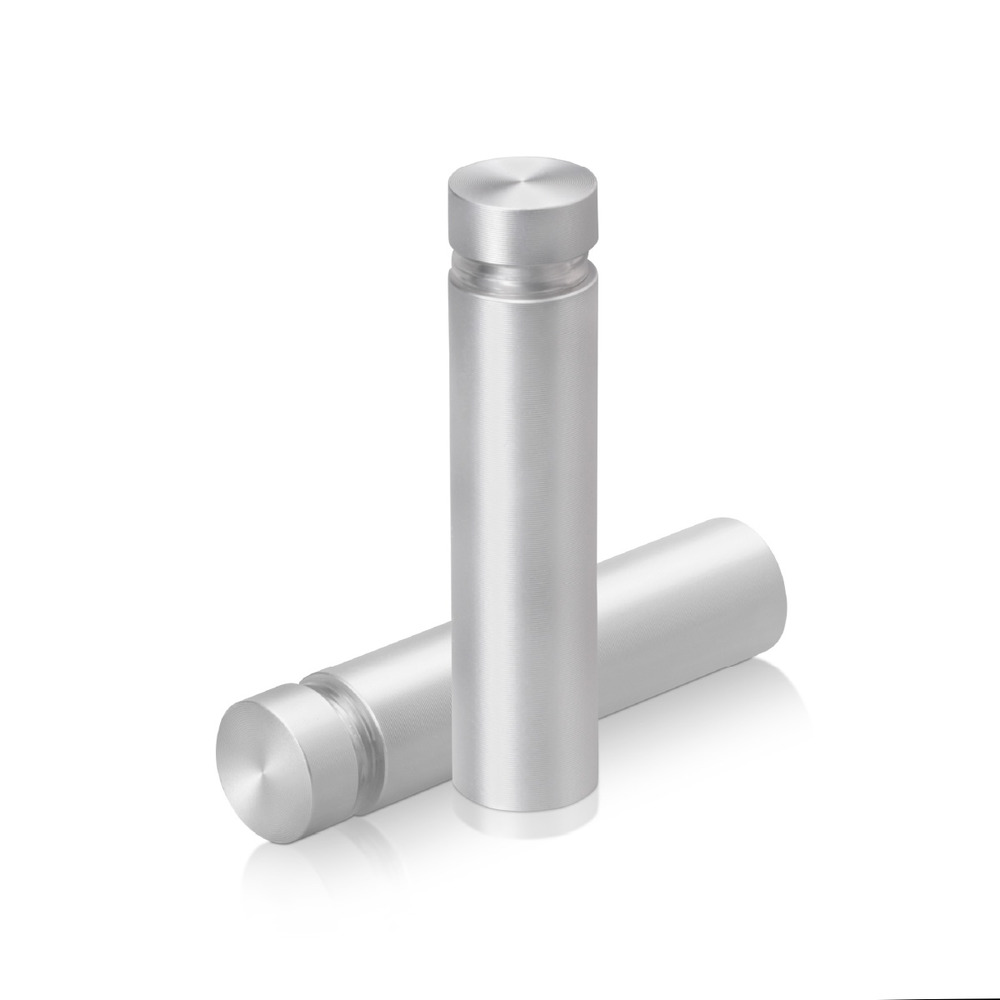

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

Product 1

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

SKU: FAH12-50A
Unit Price$3.60
Quantity Price Each (USD)
1-99 $3.60
100-501 $3.42
500+ $3.24
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

SKU: FAH12-50A
1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']
Description:
MBS-Standoffs is appreciative to present the top quality effective line of Flat Head, Reverse Threading, Tamper Proof aluminum standoffs. Our Flat Head 1 3/4'' Standoff, 1/2'' Diameter Clear Anodized standoffs are developed and also produced to the highest criteria; and offer the adhering to extraordinary features that will permit you to produce the most effective and appealing displays within your budget plan. These brand-new flat head, tamper proof standoffs are designed with a reverse thread for indoor and also exterior use. MBS-Standoffs supply an extensive range of sizes & dimensions to satisfy any kind of need . In addition, there is an exceptional option of finishes to fulfill any one of your innovative expectations. There will certainly be no high quality concerns with our items and the pricing vs. quality is the best you will certainly locate on the market.

1/2'' Diameter X 1-3/4'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 3/8'']

SKU: FAH12-50A
Sku FAH12-50A
Finish Clear Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 1/2''
Distance From Wall 1-3/4''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1-3/4''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M8x100
Required Material Hole Size 3/8''
Maximum Thick. Material 5/8''
Screw Size for Installation #6
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
