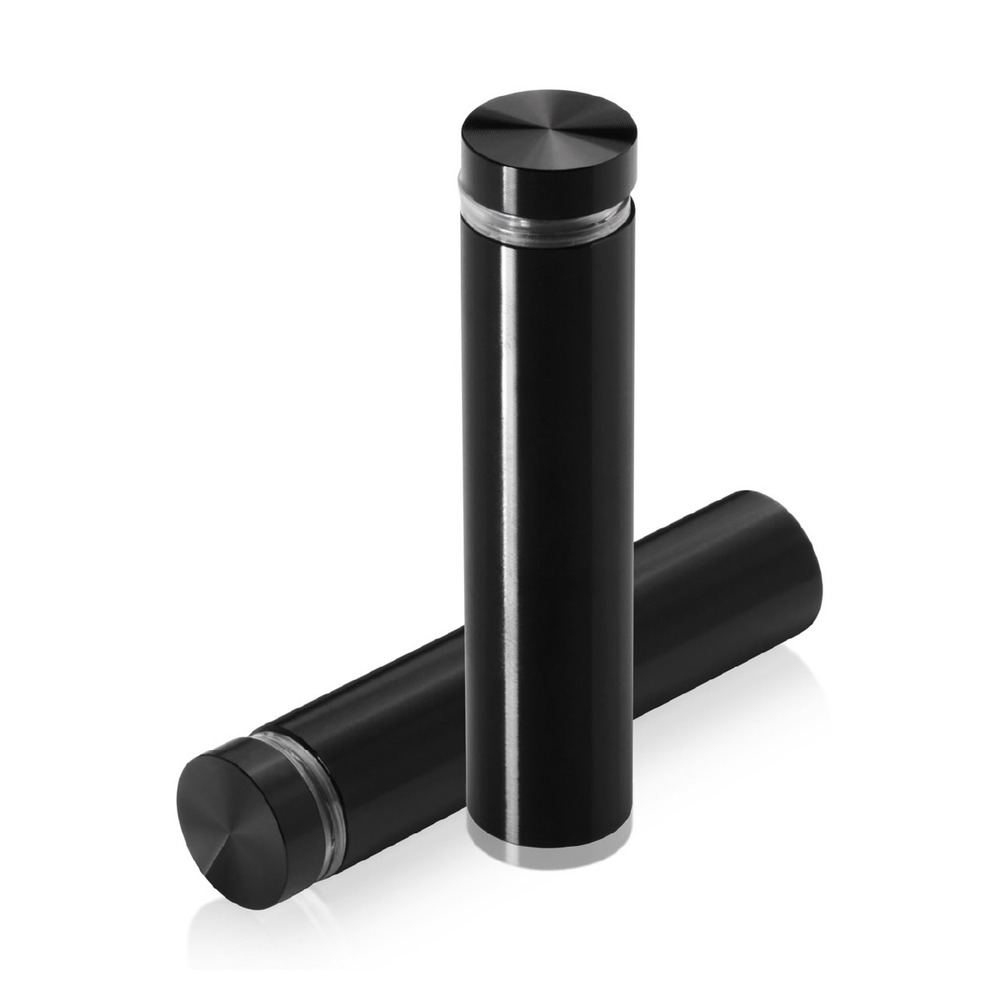

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 5/8'', Standoff: 2 1/2'', Black Anodized Finish

Product 1

5/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-70B
Unit Price$5.74
Quantity Price Each (USD)
1-99 $5.74
100-501 $5.45
500+ $5.17
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

5/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-70B
5/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
We are appreciative to have the modern reliable line of Tamper Proof, Reverse Threading, Flat Head anodized aluminum standoffs. Our standoff system; Flat Head 2 1/2'' Standoff, 5/8'' Diameter Black Anodized are established and manufactured to the greatest requirements; and supply the adhering to outstanding features that will enable you to develop one of the most effective as well as appealing displays within your budget plan. These new tamper proof, flat head standoffs are engineered with a reverse thread for indoor as well as outdoor usage. MBS-Standoffs supply a comprehensive range of dimensions & sizes to meet any sort of need . In addition, there is an exceptional selection of finishes to fulfill any of your creative expectations. There will clearly be no top quality worry about MBS's items and also the rates vs. quality is the most effective you will locate out there.

5/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-70B
Sku FAH16-70B
Finish Black Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 5/8''
Distance From Wall 2-1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 2-1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
