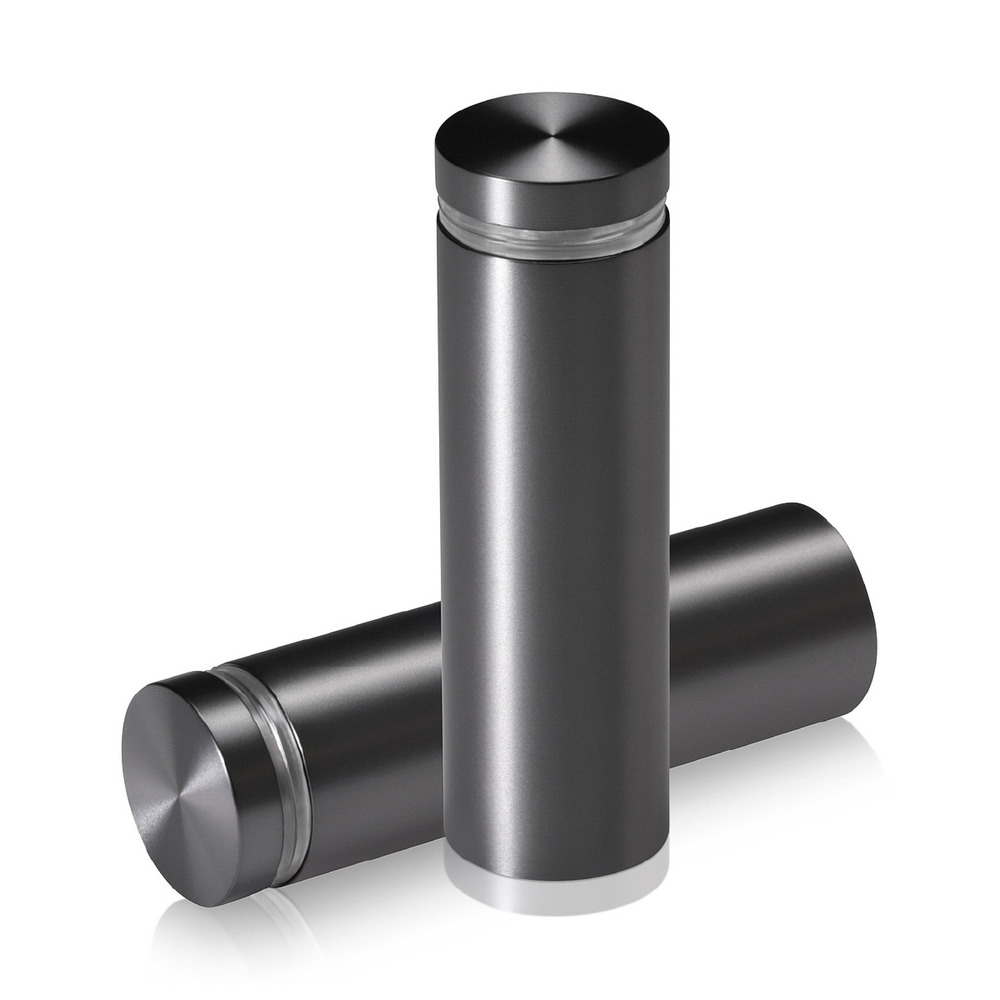

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff

Product 1

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH22-70T
Unit Price$7.21
Quantity Price Each (USD)
1-99 $7.21
100-501 $6.85
500+ $6.49
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH22-70T
7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
Flat Head, Tamper Proof, Reverse Threading standoffs. Our 2 1/2'' Standoff, 7/8'' Diameter Black Anodized standoffs are established as well as manufactured to the greatest specifications; and also provide the following awesome features that will defiantly allow you to create one of the most effective and also eye-catching displays within your budget. These new tamper proof, flat head standoffs are designed with a reverse thread for indoor and also outside use. MBS-Standoffs provide a considerable variety of sizes & dimensions to fulfill any kind of demand . On top of that, there is an outstanding choice of finishes to meet any one of your innovative assumptions. There will certainly be no top quality interest in MBS's products and also the rates vs. quality is the best you will locate in the industry.

7/8'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Titanium Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH22-70T
Sku FAH22-70T
Finish Titanium
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 7/8''
Distance From Wall 2-1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 2-1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
