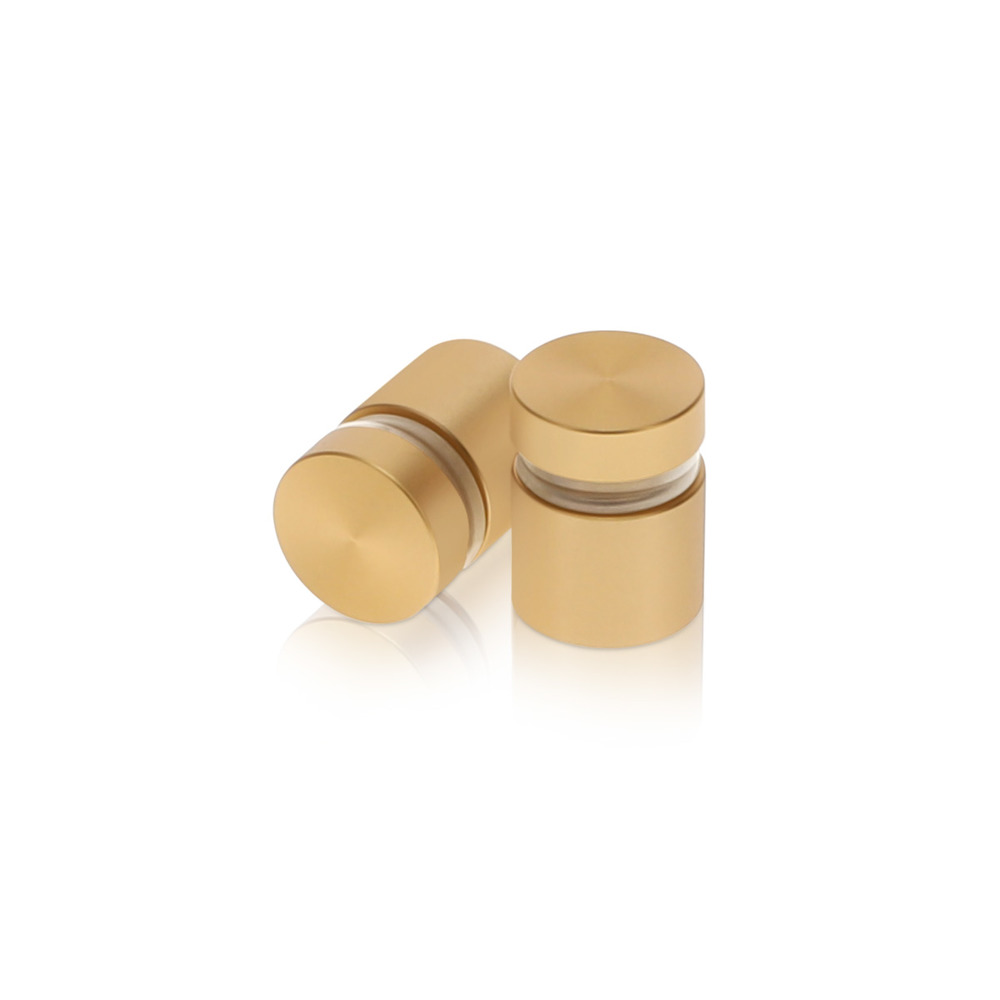

5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Matte Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

5/8'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Matte Champagne Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-12MBR

Unit Price$2.63

Quantity	Price Each (USD)
1-99	$2.63
100-501	$2.50
500+	$2.37
1000+	Contact Us

Select Diameter:

1/2''

5/8''

3/4''

7/8''

1''

1-1/4''

Select Distance From Wall:

1/2''

3/4''

1''

1-3/4''

2-1/2''

Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

SKU: FAH16-12MBR

Description:

These standoffs Systems are developed and produced to the highest standards; as well as offer the complying with awesome characteristics that will certainly allow you to produce one of the most reliable and desirable displays within your budget plan. These new tamper proof, flat head standoffs are engineered with a reverse thread for indoor and outside usage. MBS-Standoffs offer a considerable selection of dimensions & sizes to fulfill any need . In addition, there is an excellent selection of finishes to accomplish any of your imaginative assumptions. There will clearly be no quality worry about our items as well as the pricing vs. quality is the most effective you will certainly discover out there.

SKU: FAH16-12MBR

Sku	FAH16-12MBR
Finish	Matte Champagne Anodized
Inside/Outside	Inside Or Outside Use
Material	Aluminum
Material Grade	6063
Diameter	5/8''
Distance From Wall	1/2''
Cap Height	3/16''
Solid/Hollow	Solid
Head Shape	Flat
Length	1/2''
Shape	Cylinder
Washer	Included

Thickness Material Accepted	Between (0'' and 3/8'')
Thread	Metric M10x100
Required Material Hole Size	7/16''
Maximum Thick. Material	3/8''

Screw Size for Installation	#6
Installation	The installation process is very easy! First utilize your surface to mark the holes. Next you will want to drill a hole and insert your anchors. Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten) Insert a screw inside the barrel and screw it into the anchor Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete	ANC1
Anchor for Dry Wall	ANC5, ANC5Z
Load Capacity Per Standoff	15 lbs / 7 Kg

Installation Hardware	#6 Screw & Anchor
Tools Required	Phillips Screwdriver & Hand drill
