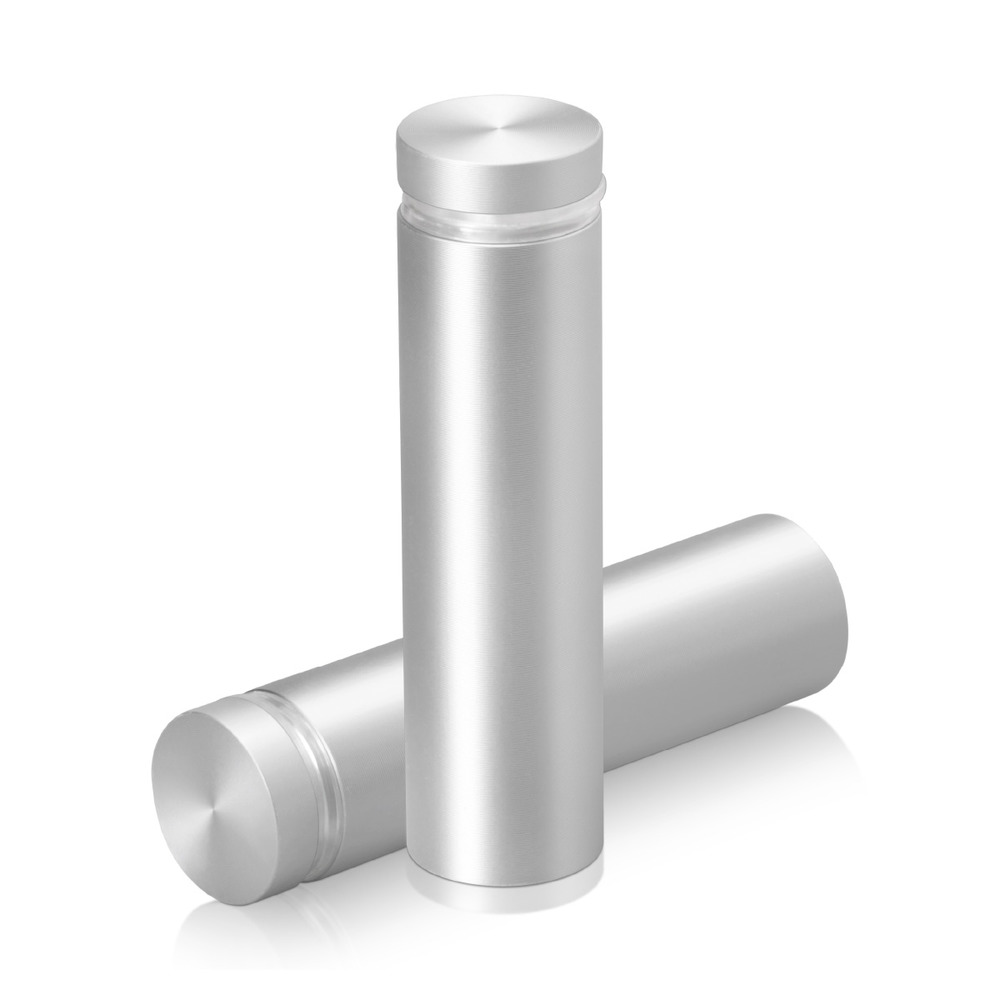

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

Product 1

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH19-70A
Unit Price$6.03
Quantity Price Each (USD)
1-99 $6.03
100-501 $5.73
500+ $5.43
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH19-70A
3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
MBS is appreciative to offer the brand-new effective line of Reverse Threading, Tamper Proof, Flat Head 2 1/2'' Standoff, 3/4'' Diameter Clear Anodized aluminum standoffs. Our standoff systems are created and produced to the highest specifications; as well as offer the adhering to phenomenal attributes that will certainly allow you to create the most effective as well as desirable displays within your spending plan. These brand-new tamper proof, flat head standoffs are crafted with a reverse thread for indoor as well as exterior usage. MBSStandoffs supply an extensive variety of sizes & dimensions to satisfy any sort of demand . Furthermore, there is a superb choice of finishes to satisfy any of your creative assumptions. There will certainly be no high quality concerns with our items as well as the prices vs. quality is the most effective you will find out there.

3/4'' Diameter X 2-1/2'' Barrel Length, Aluminum Flat Head Standoffs, Clear Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH19-70A
Sku FAH19-70A
Finish Clear Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 3/4''
Distance From Wall 2-1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 2-1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
