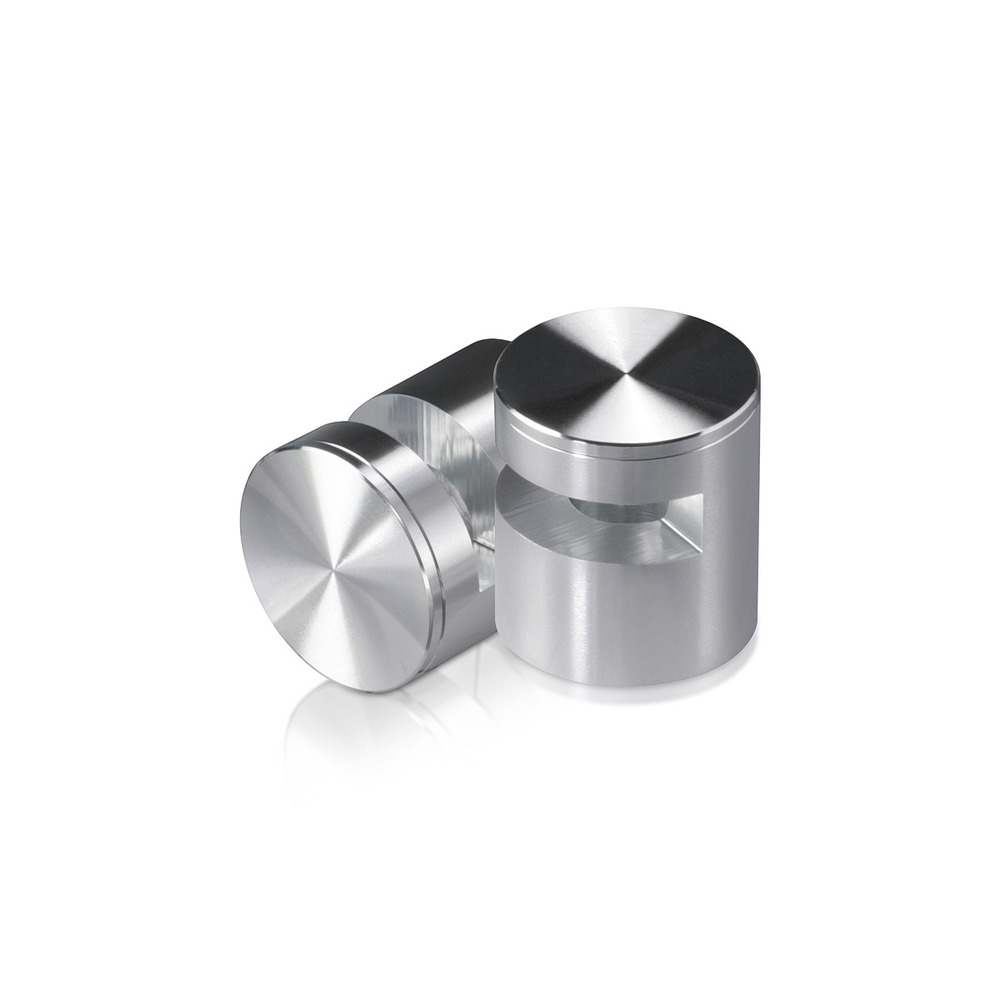

1'' Diameter X 9/16'' Barrel Length, Aluminum Clear Shiny Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only) [Required Material Hole Size: 7/16'']

Product 1

1'' Diameter X 9/16'' Barrel Length, Aluminum Clear Shiny Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)

SKU: AEGTC250AS
Unit Price$7.36
Quantity Price Each (USD)
1-99 $7.36
100-501 $6.99
500+ $6.62
1000+ Contact Us

Select Finish:

Clear Anodized

Black Anodized Shiny

Black Anodized

Clear Anodized Shiny

Clear Shiny Anodized

1'' Diameter X 9/16'' Barrel Length, Aluminum Clear Shiny Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)

SKU: AEGTC250AS
1'' Diameter X 9/16'' Barrel Length, Aluminum Clear Shiny Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)
Description:
Our Fixed Edge Grips are the perfect solution without the need to drill holes in your material. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! This line of edge grips will make your project shine with the ability to hang up anything up to 5/16''. Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

1'' Diameter X 9/16'' Barrel Length, Aluminum Clear Shiny Anodized Finish. Easy Fasten Edge Grip Standoff (For Inside Use Only)

SKU: AEGTC250AS
Sku AEGTC250AS
Finish Clear Shiny Anodized
Inside/Outside Inside Use Only
Material Aluminum
Material Grade 6063
Diameter 1''
Distance From Wall 9/16''
Cap Height 1/16''
Solid/Hollow Solid
Head Shape Flat
Length 9/16''
Shape Cylinder
Washer Not Included
Thickness Material Accepted Between (1/4'' and 1/4'')
Required Material Hole Size 7/16''
Maximum Thick. Material 1/4''
Screw Size for Installation #8
Installation

To install our Edge Grips is quick and easy.<br />
Mark on your surface area where you will put your holes.<br />
Now, drill a hole for each marked area (hole size is according to anchor type), and then insert your anchors into each hole. <br />
After you put your anchors in you will want to take an Allen key and unlock the edge grip.<br />
Remove the edge grip from the base and insert the Phillips flat head screw into the barrel and screw into your anchor.<br />
You will now want to insert the edge grip back into the base and tighten to the base.<br />
Lastly, place your material in the slots of the edge grips and tighten the set screw down until it is tight on your material. <br />
Once this is complete, wipe off any finger smudges on the standoff and stare in amazement at your completed project.
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 19 lbs / 9 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, 2MM Hex Key for M4 Set Screw
