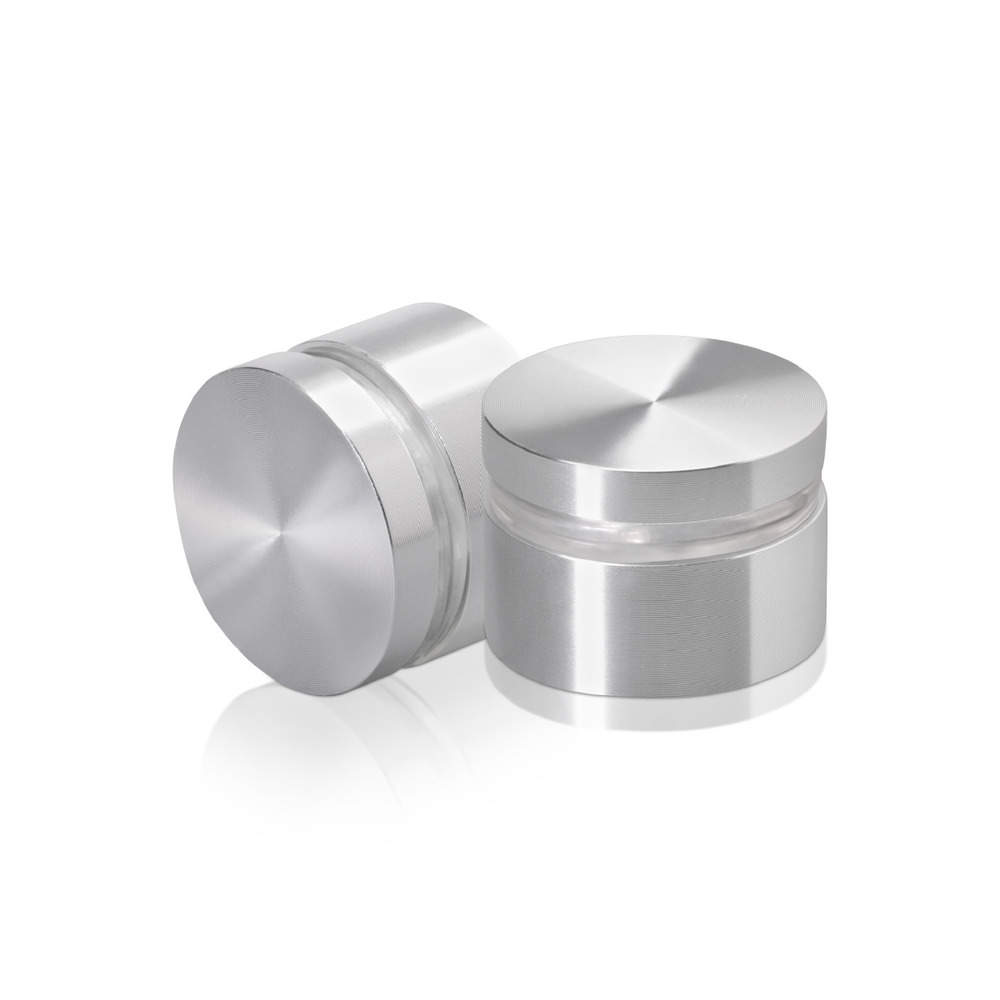

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff

Product 1

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-12AS
Unit Price$4.96
Quantity Price Each (USD)
1-99 $4.96
100-501 $4.71
500+ $4.46
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-12AS
1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
MBS-Standoffs is proud to have the Shiney Anodized 1/2'' Standoff 1 1/4'' top quality effective line of Reverse Threading, Flat Head, Tamper Proof aluminum standoffs. Our standoffs are established and produced to the highest specifications; and provide the following extraordinary attributes that will certainly enable you to develop one of the most effective as well as eye-catching displays within your spending plan. These new tamper proof, flat head standoffs are crafted with a reverse thread for indoor as well as outside use. MBS-Standoffs offer a comprehensive variety of dimensions & sizes to fulfill any kind of need . Additionally, there is an exceptional option of finishes to accomplish any of your innovative expectations. There will certainly be no quality interest in MBS's items and also the rates vs. quality is the very best you will certainly discover the best in our industry.

1-1/4'' Diameter X 1/2'' Barrel Length, Aluminum Flat Head Standoffs, Shiny Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH30-12AS
Sku FAH30-12AS
Finish Silver Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 1-1/4''
Distance From Wall 1/2''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1/2''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
