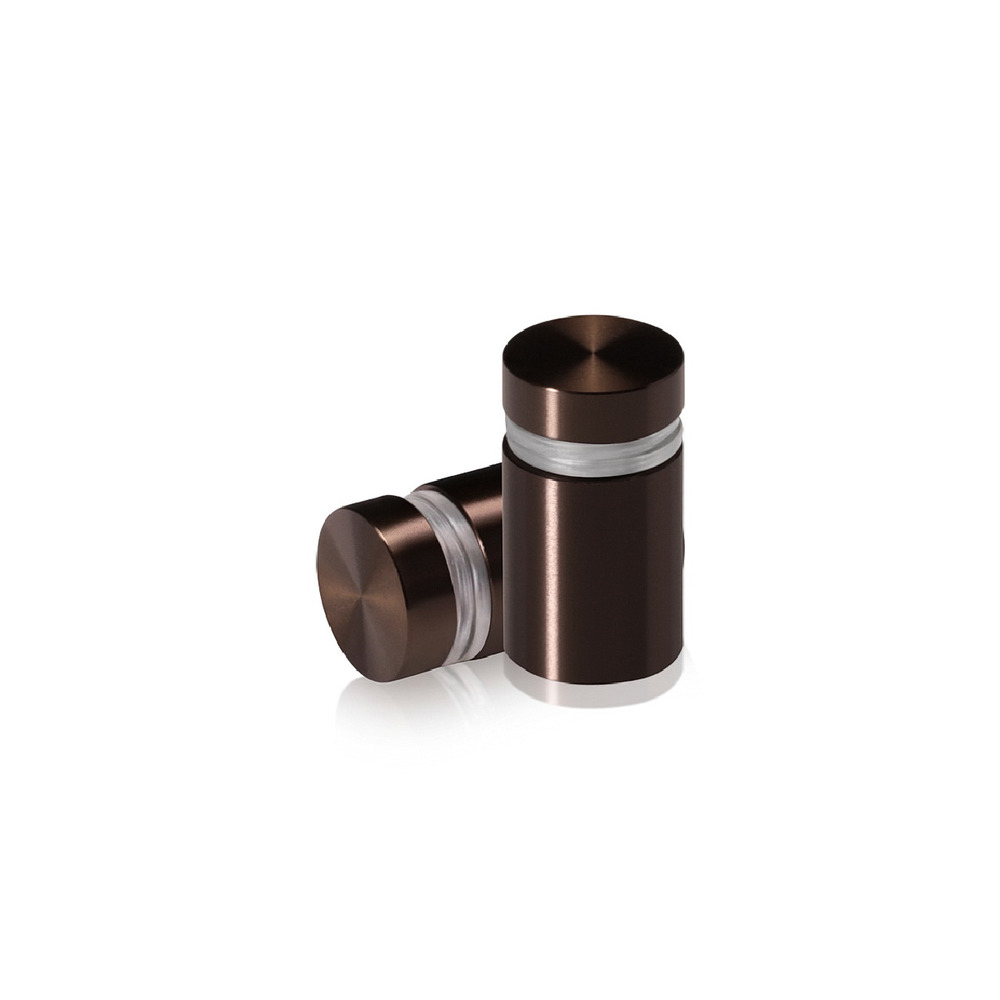

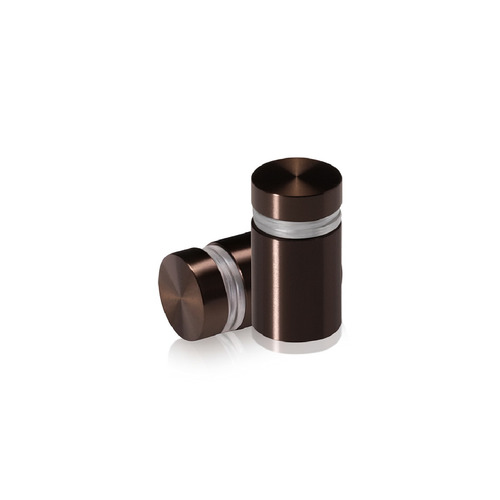

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 5/8'', Standoff: 3/4'', Bronze Anodized Finish

Product 1

5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-25AB
Unit Price$2.87
Quantity Price Each (USD)
1-99 $2.87
100-501 $2.73
500+ $2.58
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-25AB
5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
MBS-Standoffs is happy to provide the original effective line of Tamper Proof, Flat Head, Reverse Threading anodized aluminum standoffs. Our Bronze Anodized standoffs are established and also manufactured to the highest specifications; and supply the adhering to exceptional characteristics that will permit you to develop the most efficient and also attractive displays within your budget. These new tamper proof, flat head standoffs are engineered with a reverse thread for interior and also outdoor use. MBS-Standoffs provide a substantial selection of sizes & dimensions to meet any type of requirement . Additionally, there is an outstanding selection of finishes to meet any of your imaginative assumptions. There will clearly be no top quality interest in our items and also the rates vs. quality is the best you will certainly locate in the sign hardware industry.

5/8'' Diameter X 3/4'' Barrel Length, Aluminum Flat Head Standoffs, Bronze Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-25AB
Sku FAH16-25AB
Finish Bronze Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 5/8''
Distance From Wall 3/4''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 3/4''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #6
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #6 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
