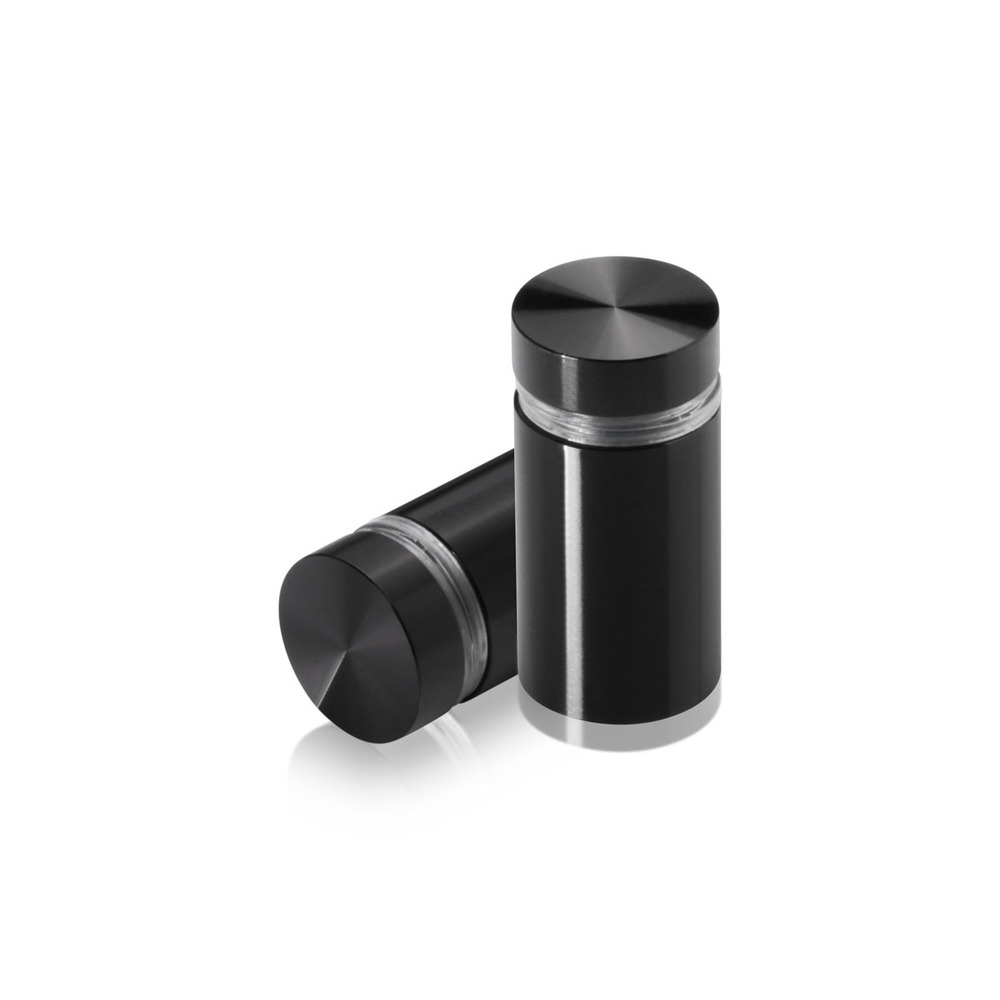

Tamper Proof Aluminum Flat Head Standoffs, Diameter: 5/8'', Standoff: 1'', Black Anodized Finish

Product 1

5/8'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-30B
Unit Price$3.01
Quantity Price Each (USD)
1-99 $3.01
100-501 $2.86
500+ $2.71
1000+ Contact Us

Select Diameter:
Select Distance From Wall:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Champagne Anodized

Gold Anodized

Matte Champagne Anodized

5/8'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-30B
5/8'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']
Description:
MBS Standoffs is noble to present the advanced efficient line of Tamper Proof, Reverse Threading, Flat Head aluminum standoffs. The Flat Head 1'' Standoff, 5/8'' Diameter, Black Anodized standoffs are developed and also produced to the greatest standards; and also supply the adhering to remarkable qualities that will certainly allow you to produce one of the most reliable as well as appealing displays within your budget. These new flat head, tamper proof standoffs are crafted with a reverse thread for indoor and also outside use. MBS-Standoffs provide a considerable range of dimensions & sizes to fulfill any kind of demand . Additionally, there is an outstanding option of finishes to satisfy any of your creative assumptions. There will certainly be no top quality worry about MBS's products as well as the prices vs. quality is the very best you will certainly locate in the marketplace

5/8'' Diameter X 1'' Barrel Length, Aluminum Flat Head Standoffs, Black Anodized Finish Easy Fasten Standoff (For Inside / Outside use) Tamper Proof Standoff [Required Material Hole Size: 7/16'']

SKU: FAH16-30B
Sku FAH16-30B
Finish Black Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Material Grade 6063
Diameter 5/8''
Distance From Wall 1''
Cap Height 3/16''
Solid/Hollow Solid
Head Shape Flat
Length 1''
Shape Cylinder
Washer Included
Thickness Material Accepted Between (0'' and 5/8'')
Thread Metric M10x100
Required Material Hole Size 7/16''
Maximum Thick. Material 5/8''
Screw Size for Installation #8
Installation

The installation process is very easy!
First utilize your surface to mark the holes.
Next you will want to drill a hole and insert your anchors.
Take your standoff and remove the cap (remember it is reverse threaded, so turn clockwise to loosen, counter-clockwise to tighten)
Insert a screw inside the barrel and screw it into the anchor
Now all you need to do is line up your material with the standoffs and screw the heads in to the barrel, and VOILA!, you have beautiful standoffs on your wall!
Anchor for Concrete ANC1
Anchor for Dry Wall ANC5, ANC5Z
Load Capacity Per Standoff 15 lbs / 7 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Phillips Screwdriver & Hand drill
