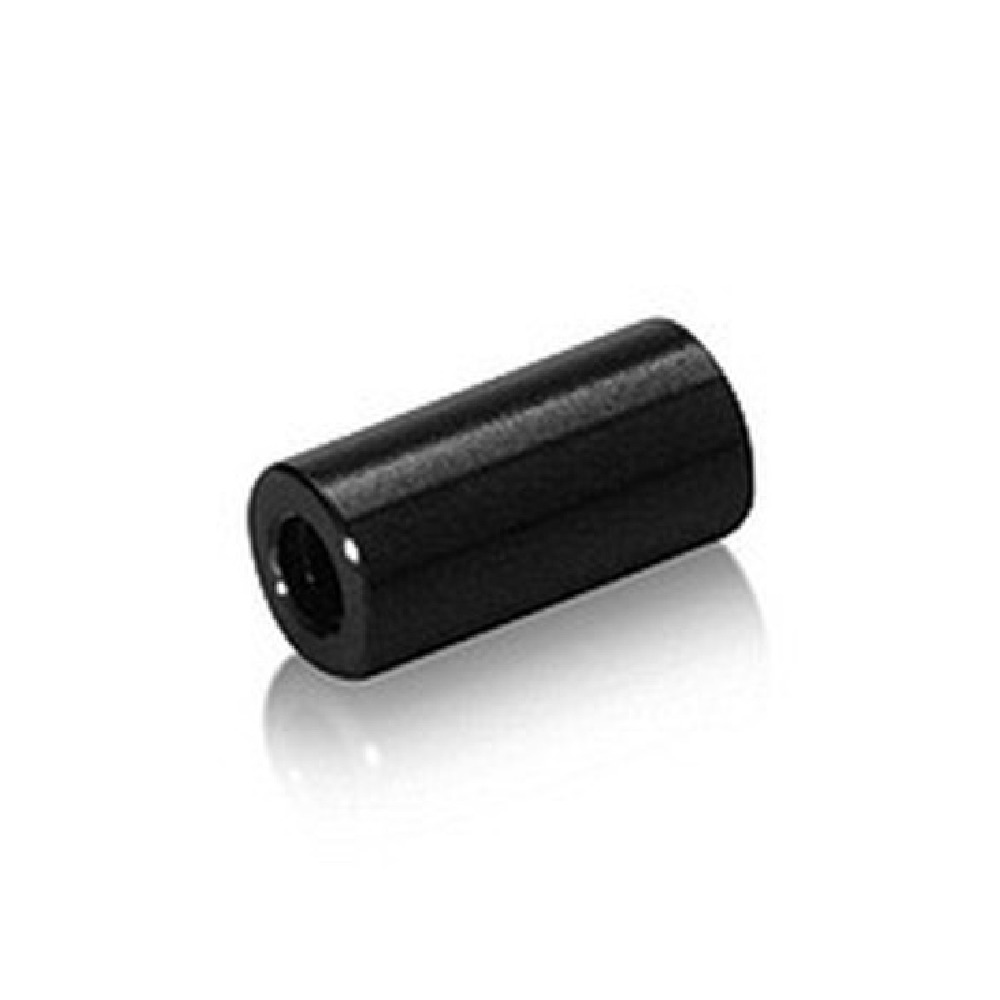

6-32 Threaded Barrels Diameter: 1/4'', Length: 1'', Black Anodized Alu
Title:
6-32 Threaded Barrels Diameter: 1/4'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 11/64'' ]
SKU:
S025-100B
Unit Price$2.75
Quantity | Price Each (USD) |
---|---|
1-99 | $2.75 |
100-499 | $2.48 |
500+ | $2.20 |
1000+ | Contact Us |
Select Diameter:
Select Thread:
Title:
6-32 Threaded Barrels Diameter: 1/4'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 11/64'' ]
SKU:
S025-100B
Description:
Title:
6-32 Threaded Barrels Diameter: 1/4'', Length: 1'', Black Anodized Aluminum [Required Material Hole Size: 11/64'' ]
SKU:
S025-100B
Sku |
S025-100B
|
Finish |
Black Anodized
|
Material |
Aluminum
|
Diameter |
1/4''
|
Distance From Wall |
1''
|
Solid/Hollow |
Solid
|
Shape |
Cylinder
|
Washer |
Not Included
|
Thread Type |
Imperial
|
Thickness Material Accepted | Between (0'' and Depends on Stud Length) |
Thread | 6-32 |
Thread Depth | Thru |
Maximum Thick. Material | Depends on Stud Length |
Screw Size for Installation | 6-32 |
Installation | <p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p> |
Anchor for Concrete | ANC1 |
Anchor for Dry Wall | ANC5, ANC5Z, ANC5ZS |
Load Capacity Per Standoff | 15 lbs / 7 Kg |
Installation Hardware | Anchor for concrete or drywall and 6-32 Studs / Combination Screws |
Tools Required | Hand Drill, 1/16'' Allen Key |
