5/16-18 Threaded Barrels Diameter: 3/4'', Length: 3/4'', Polished Stainless Steel Finish Grade 304 [Required Material Hole Size: 3/8'' ]
Quantity | Price Each (USD) |
---|---|
1-99 | $3.66 |
100-501 | $3.48 |
500+ | $3.29 |
1000+ | Contact Us |

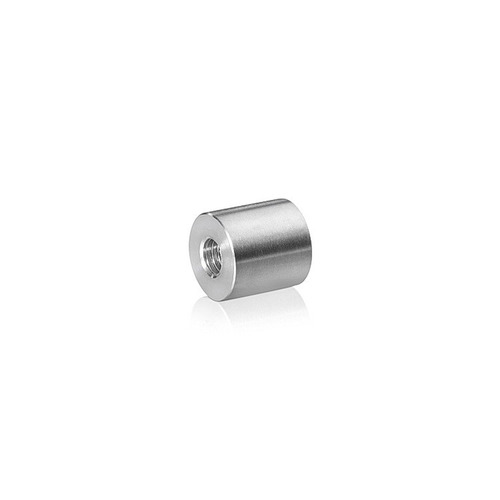

5/16-18 Threaded Barrels Diameter: 3/4'', Length: 3/4'', Polished Stainless Steel Finish Grade 304 [Required Material Hole Size: 3/8'' ]
SKU: S075-075SP![5/16-18 Threaded Barrels Diameter: 3/4'', Length: 3/4'', Polished Stainless Steel Finish Grade 304 [Required Material Hole Size: 3/8'' ]](/sites/default/files/products/b/a/_resized_decac5c02d34ad1b963dac7d8725c7d2_500.jpg)
5/16-18 Threaded Barrels Diameter: 3/4'', Length: 3/4'', Polished Stainless Steel Finish Grade 304 [Required Material Hole Size: 3/8'' ]
SKU: S075-075SPSku | S075-075SP |
Finish | Polished |
Inside/Outside | Inside Or Outside Use |
Material | Stainless Steel 304 |
Material Grade | 304 |
Diameter | 3/4'' |
Distance From Wall | 3/4'' |
Solid/Hollow | Solid |
Shape | Cylinder |
Washer | Not Included |
Thread Type | Imperial |
Thickness Material Accepted | Between (0'' and Depends on Stud Length) |
Thread | 5/16-18 |
Thread Depth | Thru |
Maximum Thick. Material | Depends on Stud Length |
Screw Size for Installation | 5/16-18 |
Installation |
<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p> |
Anchor for Concrete | ANC2 |
Anchor for Dry Wall | ANC5, ANC5Z, ANC5ZS |
Load Capacity Per Standoff | 18 lbs / 8 Kg |
Installation Hardware | Anchor for concrete or drywall and 5/16-18 Studs, #8 Combination Screws |
Tools Required | Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8 |
