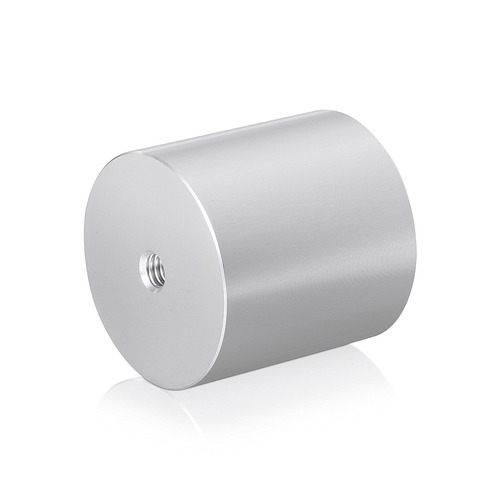

5/16-18 Threaded Barrels Diameter: 2'', Length: 2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

Product 1

5/16-18 Threaded Barrels Diameter: 2'', Length: 2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S200-200A
Unit Price$16.10
Quantity Price Each (USD)
1-99 $16.10
100-501 $15.30
500+ $14.49
1000+ Contact Us

Select Material:
Select Diameter:
Select Distance From Wall:
Select Thread:
Select Finish:

Clear Anodized

Black Anodized

Gold Anodized

5/16-18 Threaded Barrels Diameter: 2'', Length: 2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S200-200A
5/16-18 Threaded Barrels Diameter: 2'', Length: 2'', Clear Anodized [Required Material Hole Size: 3/8'' ]
Description:
Our Aluminum Barrels are perfect for all your indoor and outdoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Customize your project with multiple layers! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

5/16-18 Threaded Barrels Diameter: 2'', Length: 2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S200-200A
Sku S200-200A
Finish Clear Anodized
Inside/Outside Inside Or Outside Use
Material Aluminum
Diameter 2''
Distance From Wall 2''
Solid/Hollow Solid
Shape Cylinder
Washer Not Included
Thread Type Imperial
Thickness Material Accepted Between (0'' and Depends on Stud Length)
Thread 5/16-18
Thread Depth 1'' Both Ends
Maximum Thick. Material Depends on Stud Length
Screw Size for Installation 5/16-18
Installation

The installation process for this line is quite simple.
First, mark on your surface the area for your holes.
Next you will want to drill a hole (according to your anchor type) and then insert your anchor.
Now, take your combination screw and insert that into the anchor.
After that, take your barrel and thread it onto your thread portion of your combination screw.
Now you will want to insert your stud about halfway into your barrel.
Place your material over the stud, then screw on your cap and you are done!
Step back and admire your work!
Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z, ANC6ZS
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware Anchor for concrete or drywall and 5/16-18 Studs, #8 Combination Screws
Tools Required Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8

5/16-18 Threaded Barrels Diameter: 2'', Length: 2'', Clear Anodized [Required Material Hole Size: 3/8'' ]

SKU: S200-200A
