1/4-20 Threaded Barrels Diameter: 7/8'', Length: 2'', Gold Anodized [Required Material Hole Size: 17/64'' ]
Quantity | Price Each (USD) |
---|---|
1-99 | $6.76 |
100-501 | $6.42 |
500+ | $6.08 |
1000+ | Contact Us |

1/4-20 Threaded Barrels Diameter: 7/8'', Length: 2'', Gold Anodized [Required Material Hole Size: 17/64'' ]

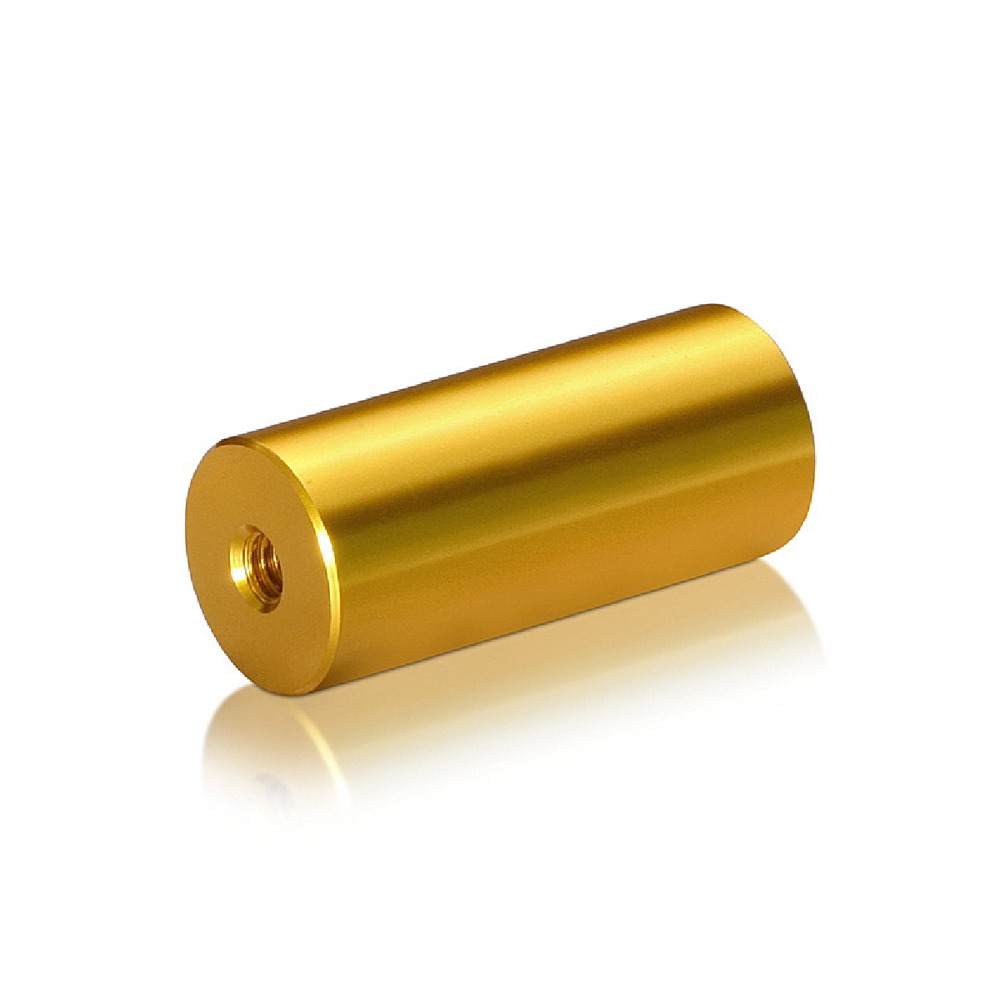

SKU: S078-20025G![1/4-20 Threaded Barrels Diameter: 7/8'', Length: 2'', Gold Anodized [Required Material Hole Size: 17/64'' ]](/sites/default/files/products/S078-20025G/_resized_d9b2f83370594e3fa53f7b432b9e0256_500.jpg)
1/4-20 Threaded Barrels Diameter: 7/8'', Length: 2'', Gold Anodized [Required Material Hole Size: 17/64'' ]
SKU: S078-20025GSku | S078-20025G |
Finish | Gold Anodized |
Inside/Outside | Inside Or Outside Use |
Material | Aluminum |
Diameter | 7/8'' |
Distance From Wall | 2'' |
Solid/Hollow | Solid |
Shape | Cylinder |
Washer | Not Included |
Thread Type | Imperial |
Thickness Material Accepted | Between (0'' and Depends on Stud Length) |
Thread | 1/4-20 |
Thread Depth | Thru |
Maximum Thick. Material | Depends on Stud Length |
Screw Size for Installation | 1/4-20 |
Installation |
<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p> |
Anchor for Concrete | ANC2 |
Anchor for Dry Wall | ANC6, ANC6Z |
Load Capacity Per Standoff | 18 lbs / 8 Kg |
Installation Hardware | Anchor for concrete or drywall and 1/4-20 Studs / Combination Screws |
Tools Required | Hand Drill, HEXBIT1/8 |
