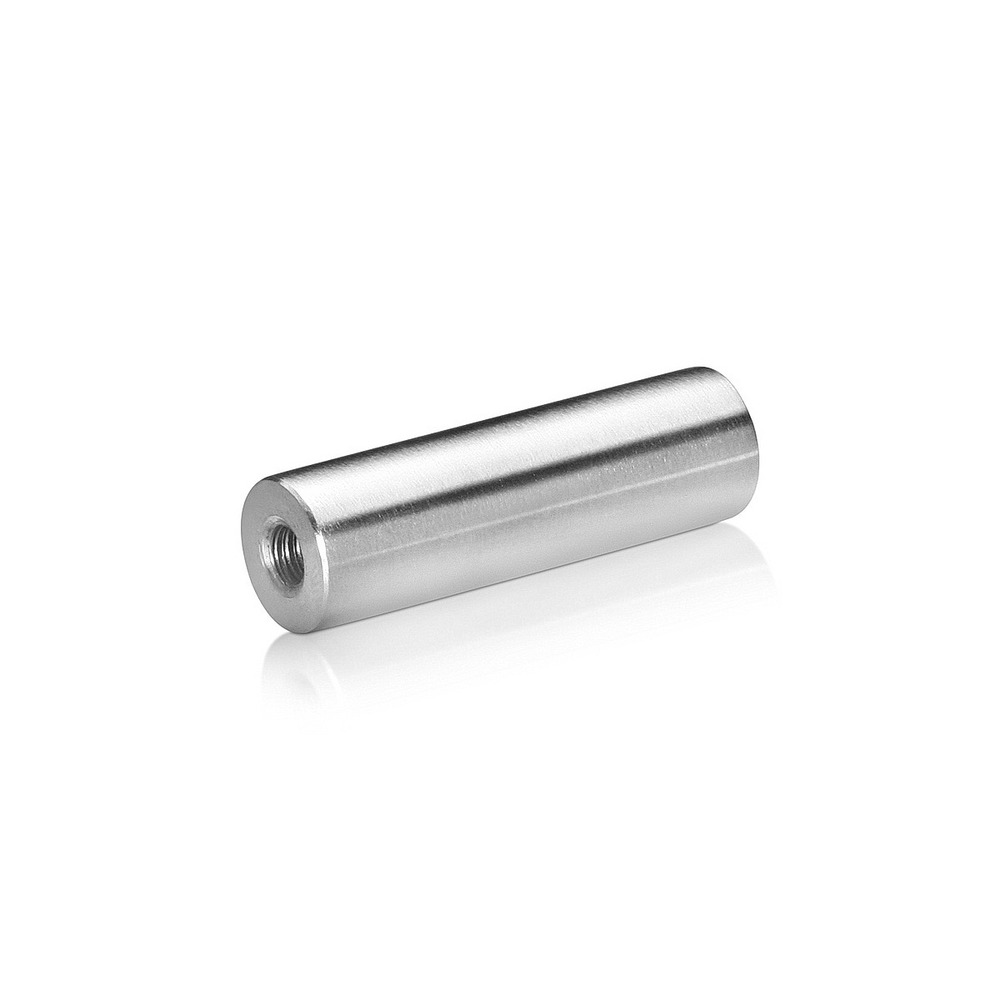

1/4-20 Threaded Barrels Diameter: 5/8'', Length: 2'', Brushed Satin Finish Grade 304 [Required Material Hole Size: 17/64'' ]

1/4-20 Threaded Barrels Diameter: 5/8'', Length: 2'', Brushed Satin Finish Grade 304 [Required Material Hole Size: 17/64'' ]

SKU: S058-20025SS

Unit Price$8.01

Quantity	Price Each (USD)
1-99	$8.01
100-501	$7.61
500+	$7.21
1000+	Contact Us

Click Here To View Similar Products In Our Catalog

Select Material:

Aluminum

Stainless Steel 304

Stainless Steel 316

Select Diameter:

5/8''

3/4''

7/8''

1''

Select Distance From Wall:

1/4''

1/2''

3/4''

1''

1-1/2''

2''

3''

Select Thread:

1/4-20

5/16-18

Select Finish:

Satin Brushed

Polished

1/4-20 Threaded Barrels Diameter: 5/8'', Length: 2'', Brushed Satin Finish Grade 304 [Required Material Hole Size: 17/64'' ]

SKU: S058-20025SS

Description:

Our Stainless Steel Barrels are perfect for all your indoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Customize your project with multiple layers! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

1/4-20 Threaded Barrels Diameter: 5/8'', Length: 2'', Brushed Satin Finish Grade 304 [Required Material Hole Size: 17/64'' ]

SKU: S058-20025SS

Sku	S058-20025SS
Finish	Satin Brushed
Inside/Outside	Inside Or Outside Use
Material	Stainless Steel 304
Material Grade	304
Diameter	5/8''
Distance From Wall	2''
Solid/Hollow	Solid
Shape	Cylinder
Washer	Not Included
Thread Type	Imperial

Thickness Material Accepted	Between (0'' and Depends on Stud Length)
Thread	1/4-20
Thread Depth	1'' Both Ends
Maximum Thick. Material	Depends on Stud Length

Screw Size for Installation	1/4-20
Installation	The installation process for this line is quite simple. First, mark on your surface the area for your holes. Next you will want to drill a hole (according to your anchor type) and then insert your anchor. Now, take your combination screw and insert that into the anchor. After that, take your barrel and thread it onto your thread portion of your combination screw. Now you will want to insert your stud about halfway into your barrel. Place your material over the stud, then screw on your cap and you are done! Step back and admire your work!
Anchor for Concrete	ANC1
Anchor for Dry Wall	ANC5, ANC5Z, ANC5Z1024S
Load Capacity Per Standoff	18 lbs / 8 Kg

Installation Hardware	Anchor for concrete or drywall and 1/4-20 Studs / Combination Screws
Tools Required	Hand Drill, HEXBIT1/8

1/4-20 Threaded Barrels Diameter: 5/8'', Length: 2'', Brushed Satin Finish Grade 304 [Required Material Hole Size: 17/64'' ]

SKU: S058-20025SS

1/4-20 Threaded Barrels Diameter: 5/8'', Length: 2'', Brushed Satin Finish Grade 304 [Required Material Hole Size: 17/64'' ]

SKU: S058-20025SS
