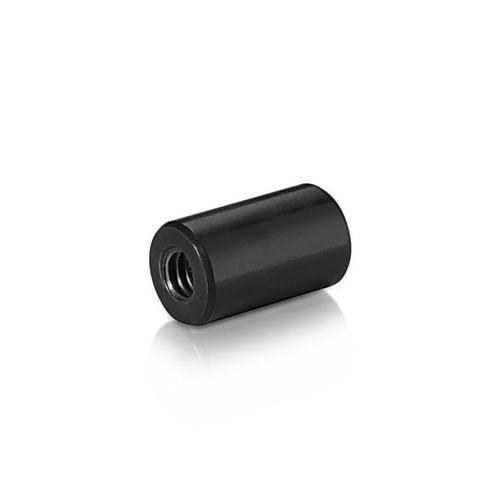

10-24 Threaded Barrels Diameter: 5/8'', Length: 1'', Black Anodized [Required Material Hole Size: 7/32'']

10-24 Threaded Barrels Diameter: 5/8'', Length: 1'', Black Anodized [Required Material Hole Size: 7/32'']

SKU: S058-100-1024B

Unit Price$2.82

Quantity	Price Each (USD)
1-99	$2.82
100-501	$2.68
500+	$2.54
1000+	Contact Us

Select Diameter:

1/4''

3/8''

1/2''

5/8''

3/4''

7/8''

1''

1-1/4''

1-1/2''

2''

Select Distance From Wall:

1/4''

1/2''

3/4''

1''

Select Thread:

10-24

1/4-20

5/16-18

Select Finish:

Clear Anodized

Black Anodized

Satin Brushed

Polished

10-24 Threaded Barrels Diameter: 5/8'', Length: 1'', Black Anodized [Required Material Hole Size: 7/32'']

SKU: S058-100-1024B

Description:

Our Aluminum Barrels are perfect for all your indoor and outdoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Customize your project with multiple layers! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

10-24 Threaded Barrels Diameter: 5/8'', Length: 1'', Black Anodized [Required Material Hole Size: 7/32'']

SKU: S058-100-1024B

Sku	S058-100-1024B
Finish	Black Anodized
Inside/Outside	Inside Or Outside Use
Diameter	5/8''
Distance From Wall	1''
Solid/Hollow	Solid
Shape	Cylinder
Thread Type	Imperial

Thickness Material Accepted	Between (0'' and Depends on Stud Length)
Thread	10-24
Thread Depth	Thru
Maximum Thick. Material	Depends on Stud Length

Screw Size for Installation	5/16-18
Installation	<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p>
Anchor for Concrete	ANC1
Anchor for Dry Wall	ANC5, ANC5Z, ANC5ZS
Load Capacity Per Standoff	15 lbs / 7 Kg

Installation Hardware	Anchor for concrete or drywall and 10-24 Studs / Combination Screws
Tools Required	Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8
