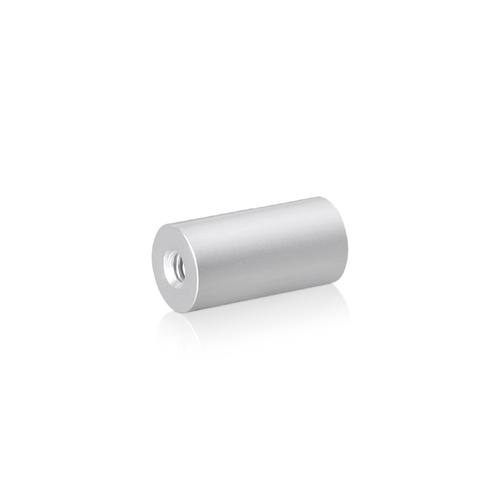

10-24 Threaded Barrels Diameter: 1/2'', Length: 1'', Clear Anodized

10-24 Threaded Barrels Diameter: 1/2'', Length: 1'', Clear Anodized [Required Material Hole Size: 7/32'' ]

SKU: S050-100A

Unit Price$2.68

Quantity	Price Each (USD)
1-99	$2.68
100-501	$2.55
500+	$2.41
1000+	Contact Us

Select Material:

Aluminum

Stainless Steel 304

Stainless Steel 316

Select Diameter:

3/8''

1/2''

5/8''

3/4''

1''

Select Distance From Wall:

1/4''

1/2''

3/4''

1''

2''

5''

Select Thread:

10-24

Select Finish:

Clear Anodized

Gold Anodized

10-24 Threaded Barrels Diameter: 1/2'', Length: 1'', Clear Anodized [Required Material Hole Size: 7/32'' ]

SKU: S050-100A

Description:

Our Aluminum Barrels are perfect for all your indoor and outdoor applications. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! Customize your project with multiple layers! Thanks to the easy installation process you can have an exhibit displayed anywhere you would like in no time! If you look below you will notice technical descriptions about this particular standoff.

10-24 Threaded Barrels Diameter: 1/2'', Length: 1'', Clear Anodized [Required Material Hole Size: 7/32'' ]

SKU: S050-100A

Sku	S050-100A
Finish	Clear Anodized
Inside/Outside	Inside Or Outside Use
Material	Aluminum
Diameter	1/2''
Distance From Wall	1''
Solid/Hollow	Solid
Shape	Cylinder
Washer	Not Included
Thread Type	Imperial

Thread	10-24
Thread Depth	Thru

Screw Size for Installation	10-24
Installation	<p>The installation process for this line is quite simple.<br />First, mark on your surface the area for your holes.<br />Next you will want to drill a hole (according to your anchor type) and then insert your anchor.<br />Now, take your combination screw and insert that into the anchor.<br />After that, take your barrel and thread it onto your thread portion of your combination screw.<br />Now you will want to insert your stud about halfway into your barrel.<br />Place your material over the stud, then screw on your cap and you are done!<br />Step back and admire your work!</p>
Anchor for Concrete	ANC1
Anchor for Dry Wall	ANC5, ANC5Z, ANC5ZS
Load Capacity Per Standoff	15 lbs / 7 Kg

Installation Hardware	Anchor for concrete or drywall and 10-24 Studs / Combination Screws
Tools Required	Hand Drill, 3/32'' Allen Key, Bit Driver (#400.424)
