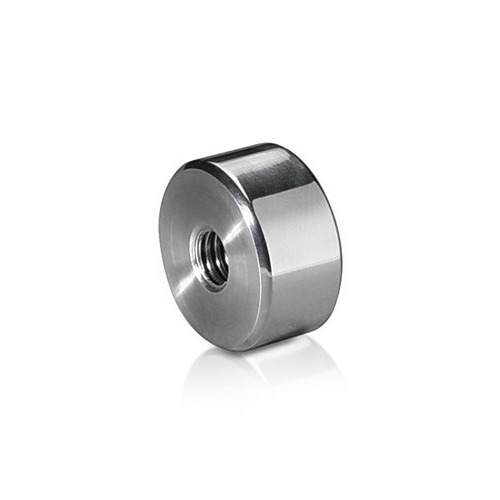

10-24 Threaded Barrels Diameter: 1'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 7/32'']
Quantity | Price Each (USD) |
---|---|
1-99 | $3.93 |
100-501 | $3.73 |
500+ | $3.54 |
1000+ | Contact Us |

10-24 Threaded Barrels Diameter: 1'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 7/32'']
SKU: S100-075-1024SP![10-24 Threaded Barrels Diameter: 1'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 7/32'']](/sites/default/files/products/s/1/_resized_14045568fa6d71602dd4e2014eb8c1f6_500.jpg)
10-24 Threaded Barrels Diameter: 1'', Length: 3/4'', Polished Finish Grade 304 [Required Material Hole Size: 7/32'']
SKU: S100-075-1024SPSku | S100-075-1024SP |
Finish | Polished |
Inside/Outside | Inside Or Outside Use |
Material | Stainless Steel 304 |
Material Grade | 304 |
Diameter | 1'' |
Distance From Wall | 3/4'' |
Solid/Hollow | Solid |
Shape | Cylinder |
Washer | Not Included |
Thread Type | Imperial |
Thickness Material Accepted | Between (0'' and Depends on Stud Length) |
Thread | 10-24 |
Thread Depth | Thru |
Maximum Thick. Material | Depends on Stud Length |
Screw Size for Installation | 5/16-18 |
Installation |
The installation process for this line is quite simple. |
Anchor for Concrete | ANC2 |
Anchor for Dry Wall | ANC6, ANC6Z, ANC6ZS |
Load Capacity Per Standoff | 18 lbs / 8 Kg |
Installation Hardware | Anchor for concrete or drywall and 10-24 Studs / Combination Screws |
Tools Required | Hand Drill, HEXBIT1/8, ALLEN5/32, ALLEN1/8 |
