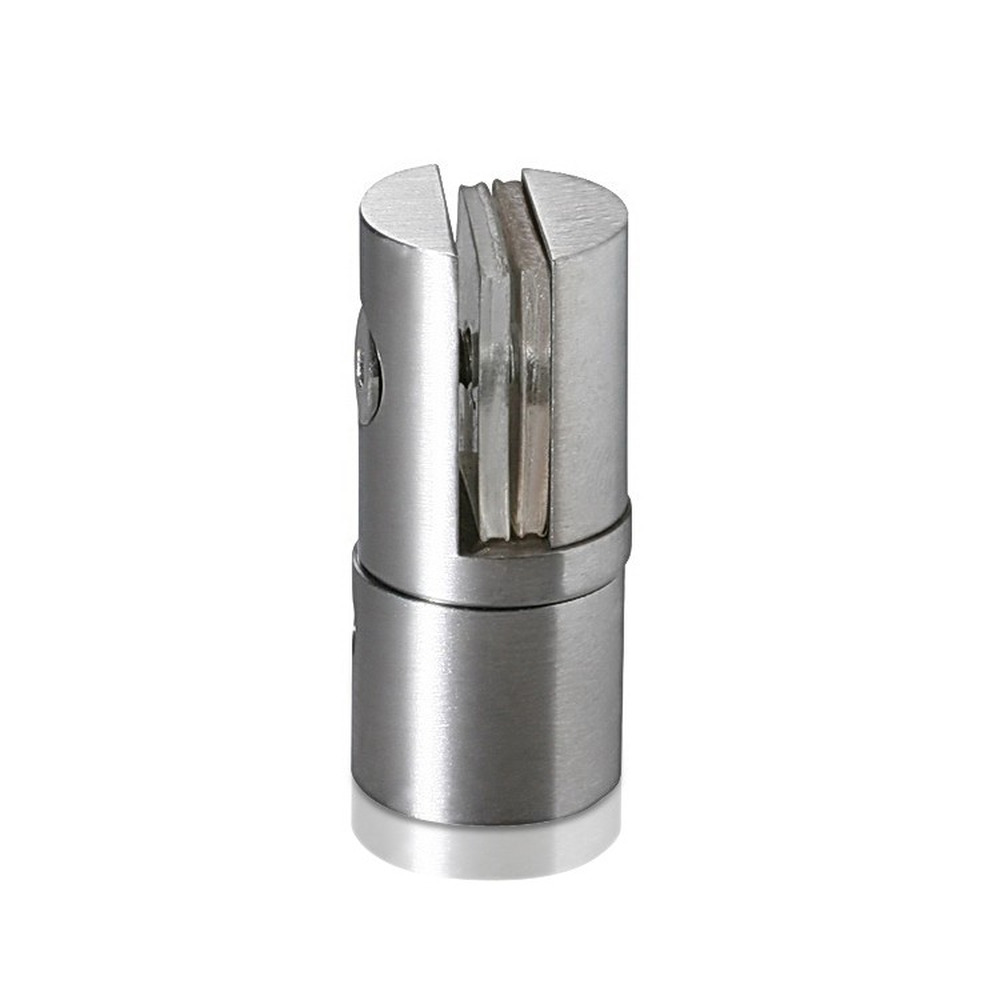

Wall Mounted side support, Standoff: 3/4'' (19 mm)
SKU: 100.322
Unit Price$6.02
Quantity Price Each (USD)
1-99 $6.02
100-499 $5.42
500+ $4.82
1000+ Contact Us
Title:
Wall Mounted side support, Standoff: 3/4'' (19 mm)
SKU: 100.322
Wall Mounted side support, Standoff: 3/4'' (19 mm)
Description:
Designed from High Quality Stainless Steel, our Wall Mounted side support standoff is simple and elegant way to project your material from the wall. If you look below you will notice technical descriptions about this particular projecting standoff.
Title:
Wall Mounted side support, Standoff: 3/4'' (19 mm)
SKU: 100.322
Sku
100.322
Finish
Satin Brushed
Inside/Outside
Inside Use Only
Material
Stainless Steel
Diameter
3/4''
Distance From Wall
5/8''
Length
1-1/2''
Washer
Included
Thickness Material Accepted Between (0'' and 1/4'')
Maximum Thick. Material 1/4''
Screw Size for Installation #8
Installation

Installation is very easy!
First, mark where you will mount your standoffs, then drill any holes necessary and insert your anchors.
Next, loosen the Set Screw from the Projecting Wall mount and screw the Projecting Wall Mount securely into your anchor.
When your Projecting Wall Mounts are attached to the wall, place your material in the Projecting Wall Mount and tighten down the set screw.
When all points are tightened down, take a step back and admire your beautiful display!

Anchor for Concrete ANC2
Anchor for Dry Wall ANC6, ANC6Z
Load Capacity Per Standoff 18 lbs / 8 Kg
Installation Hardware #8 Screw & Anchor
Tools Required Screw Driver, Hand drill, M4 Hex Key
