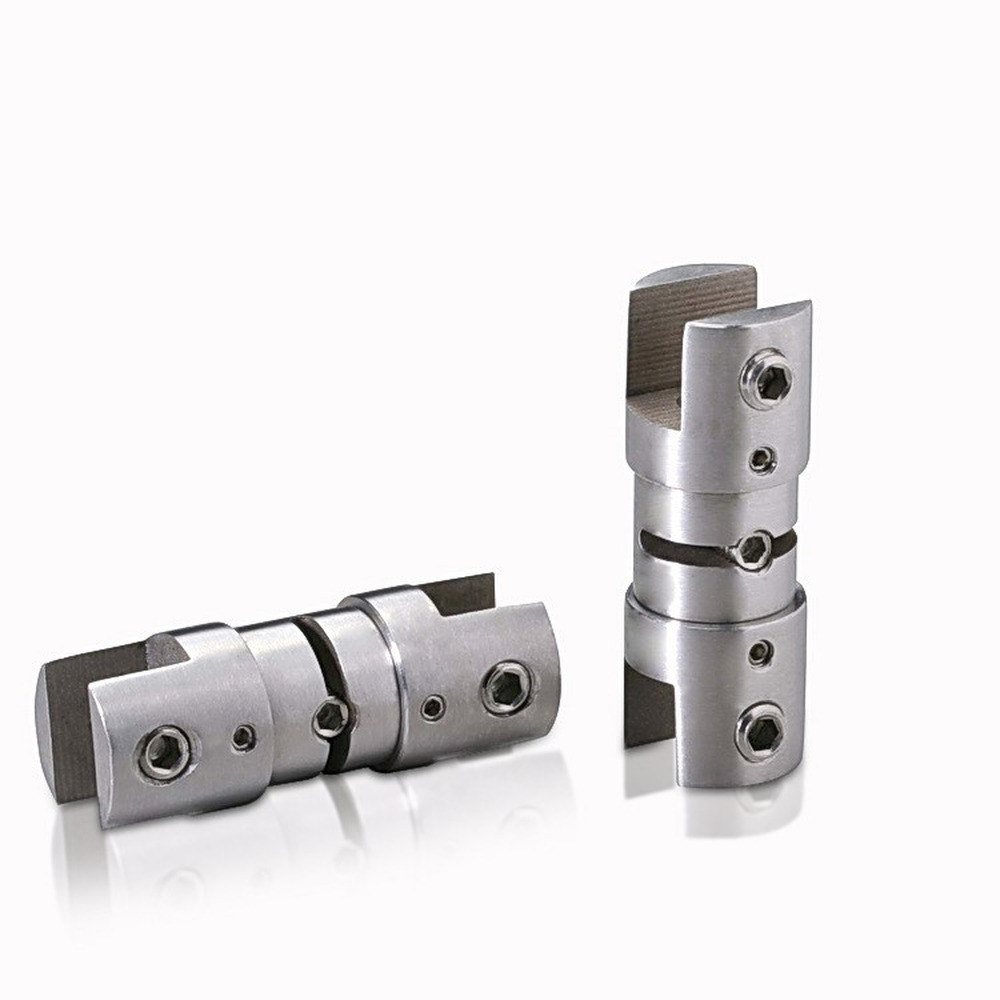

Pivoting Support - Double Sided - Side Clamp (Holds Panel up to 1/2'' Thick)
Quantity | Price Each (USD) |
---|---|
1-99 | $6.70 |
100-501 | $6.37 |
500+ | $6.03 |
1000+ | Contact Us |
Pivoting Support - Double Sided - Side Clamp (Holds Panel up to 1/2'' Thick)
SKU: SCA1812Pivoting Support - Double Sided - Side Clamp (Holds Panel up to 1/2'' Thick)
SKU: SCA1812Sku | SCA1812 |
Finish | Satin Brushed |
Inside/Outside | Inside Use Only |
Material | Stainless Steel |
Diameter | 5/8'' |
Distance From Wall | 1/2'' |
Length | 1-7/8'' |
Rated Strength | 55 lbs (25 Kg) per Steel Cable (When Properly Installed) |
Application | On Cable |
Thickness Material Accepted | Between (3/16'' and 1/2'') |
Maximum Thick. Material | 1/2'' |
Installation |
The installation process is very easy! The cable will be threaded into both the Cable Tensioner and the Ceiling mount and then tightened down. Install the bottom components first, then slide your Cable Supports onto your cable before installing your upper components. When you go to install your upper components, determine if you have any excess cable and carefully cut away the excess. |
Installation Hardware | None Needed |
Tools Required | M3 Hex key, M5 Hex key, M6 Hex key |
