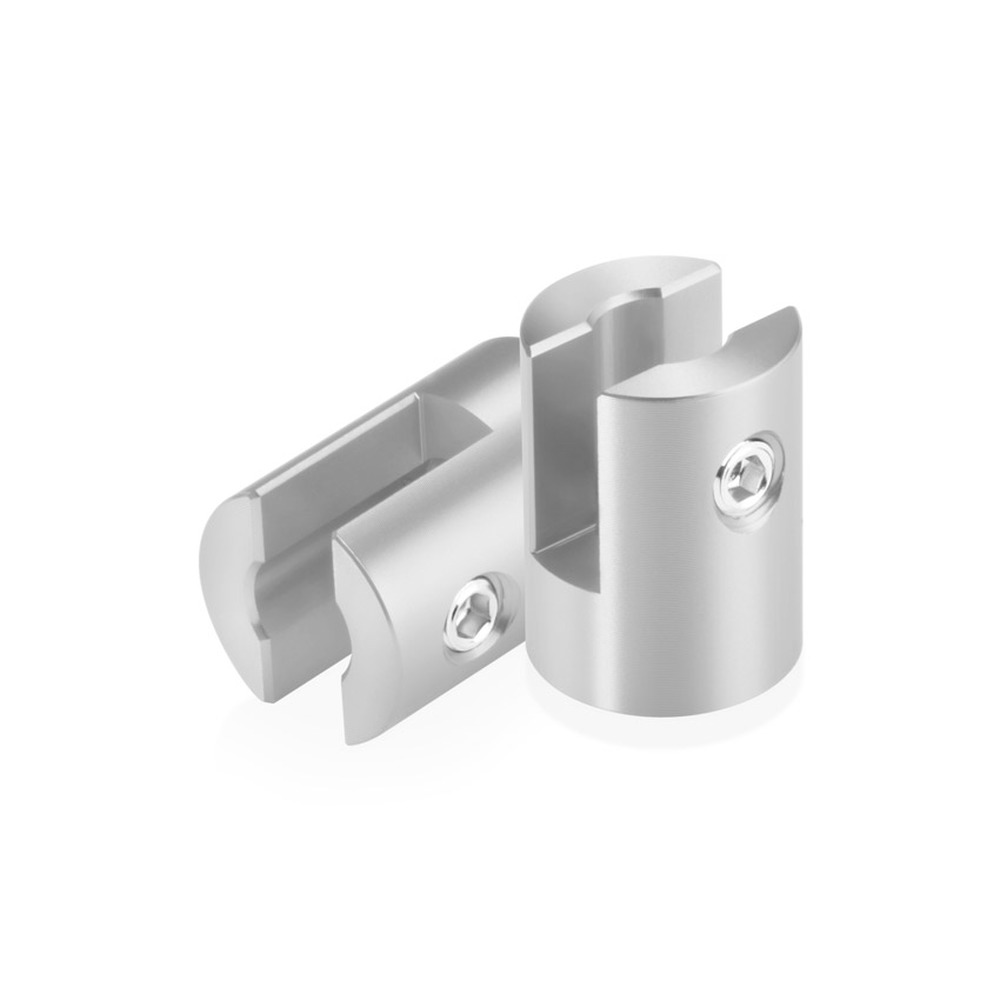

Aluminum Anodized Finish Projecting Gripper, Holds Up To 1/4'' Material
SKU: HM075-100A
Unit Price$5.16
Quantity Price Each (USD)
1-99 $5.16
100-499 $4.64
500+ $4.13
1000+ Contact Us
Select Material:
Select Diameter:
Select Finish:

Clear Anodized

Silver Anodized

Black Anodized

Titanium

Bronze Anodized

Gold Anodized

Title:
Aluminum Anodized Finish Projecting Gripper, Holds Up To 1/4'' Material
SKU: HM075-100A
Aluminum Anodized Finish Projecting Gripper, Holds Up To 1/4'' Material
Description:
"Our projecting and gripper systems are a fantastic way to set your company apart. The elegant finishes that we carry will give your display a unique look that will make it stand out like no other! With our Gripper System, project your signage securely with no need to drill a hole in your material! If you look below you will notice technical descriptions about this particular gripper."
Title:
Aluminum Anodized Finish Projecting Gripper, Holds Up To 1/4'' Material
SKU: HM075-100A
Sku
HM075-100A
Finish
Clear Anodized
Inside/Outside
Inside Or Outside Use
Material
Aluminum
Diameter
3/4''
Distance From Wall
3/8''
Length
1''
Washer
Not Included
Thickness Material Accepted Between (0'' and 1/4'')
Maximum Thick. Material 1/4''
Screw Size for Installation #6
Installation

Installation is very easy!
First, mark where you will mount your standoffs, then drill any holes necessary and insert your anchors.
Next, loosen the Set Screw from the Gripper Wall mount and screw the Gripper Wall Mount securely into your anchor.
When your Gripper Wall Mounts are attached to the wall, place your material in the Gripper Wall Mount and tighten down the set screw.
When all points are tightened down, take a step back and admire your beautiful display!

Anchor for Concrete ANC2
Anchor for Dry Wall ANC5, ANC5Z
Installation Hardware #6 Screw and Anchor
Tools Required 3mm Hex key
