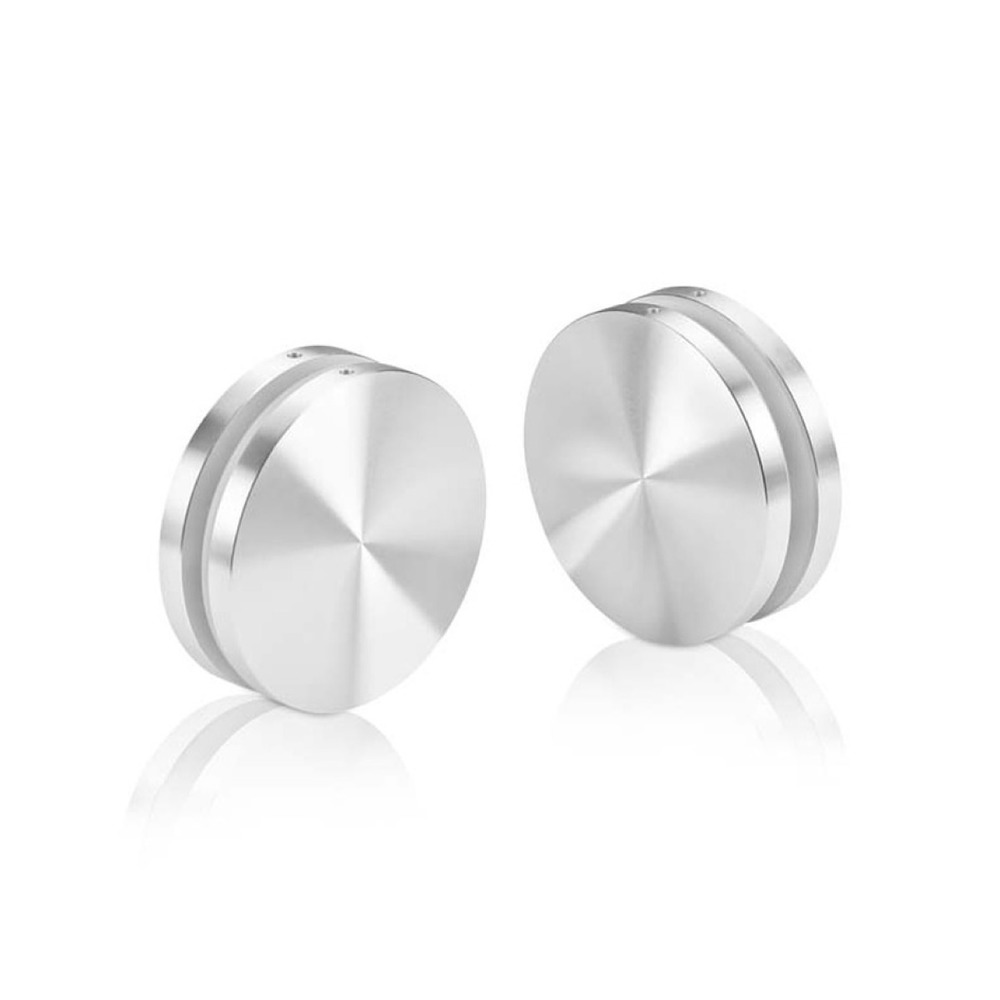

2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')

2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Mat

2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')
Title:
2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')
SKU: M200AS
Unit Price$9.26
Quantity Price Each (USD)
1-99 $9.26
100-499 $8.61
500+ $7.96
1000+ Contact Us
Select Shape:
Select Diameter:
Select Finish:

Clear Anodized

Matte Black

Brushed

Champagne Anodized

Gold Anodized

Matte Black Anodized

Polished

Clear Shiny Anodized

Title:
2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')
SKU: M200AS
2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')
Description:

Perfect for joining vertical interior panels of heavy glass in malls, these Mall Front Clamps offer convenience and safety. They are designed to be used with 1/4'' to 1/2'' (6 to 12mm) tempered glass and are compatible with monolithic tempered glass. These clamps are easy to install and help prevent finger or clothing entrapment between the glass panels. To tighten the round cap, simply insert a 3/32'' drill into the round hole in the beveled edge and turn. The 2'' (51mm) diameter clamps are available in either solid brass construction with brushed nickel, brass, or chrome finishes, or aluminum construction with satin anodized or black finishes. It is recommended to maintain a minimum gap of 1/4'' (6mm) between the panels. For custom finishes, please contact the MBS Technical Sales Department. Please note that shipping weights provided are approximate and have not been verified. If you require the exact weight for shipping cost calculation, kindly request this information from MBS Customer Service before submitting your order. The product images shown are either of the actual product or a close representation. Please be aware that colors may vary due to differences in computer video cards and monitor color settings. Assembled with 2 x Clear Silicone Washer 1 x Zinc Set Screw M5 x 10mm 1 x Zinc Set Screw M5 x 16mm in separate clear bag 1 x 1.8 x 50mm pin (very strong material to tighten cap)

Title:
2'' Diameter Clear Shiny Anodized Aluminum, Mini Mall Front Clamp (Material Thickness Accepted: 1/4'' to 1/2'')
SKU: M200AS
Sku
M200AS
Finish
Clear Shiny Anodized
Inside/Outside
Indoor / Outdoor
Material
Aluminum
Diameter
2''
Material Grade
6063-T5
Solid/Hollow
Solid
Shape
Cylinder
Washer
Included
Thread Type
Metric
Thickness Material Accepted Between (1/4'' and 1/2'')
Thread M5X0.80
Maximum Thick. Material 1/2''
Installation

Very easy to install!, unscrew, Select correct set screw to match with your glass thickness, place between your glass and tighten firmly with tool pin supplied with. Voila!
